Comminuting- disintegrating machine «Udarnik 33»

«Udarnik 33» is equipped with two electrical engines, the capacity is 15 and 18 kW and is intended for comminuting a wide range of bulk materials of various origin with hardness index to 7 units by Moos on-scale. The biggest original fraction is under 12 mm and the material moisture is under 6%. The disintegrator mode is an intermittent rating of short duration. After an hour of continuous operation, the disintegrator needs to stop and start again only in an hour.

Overall dimensions as a set, mm (length*width* height ) 1200*800*760
Mass of the unit, kg 500
Installed capacity, kW 33
Performance, at least, ton/hour 5
1 pc.

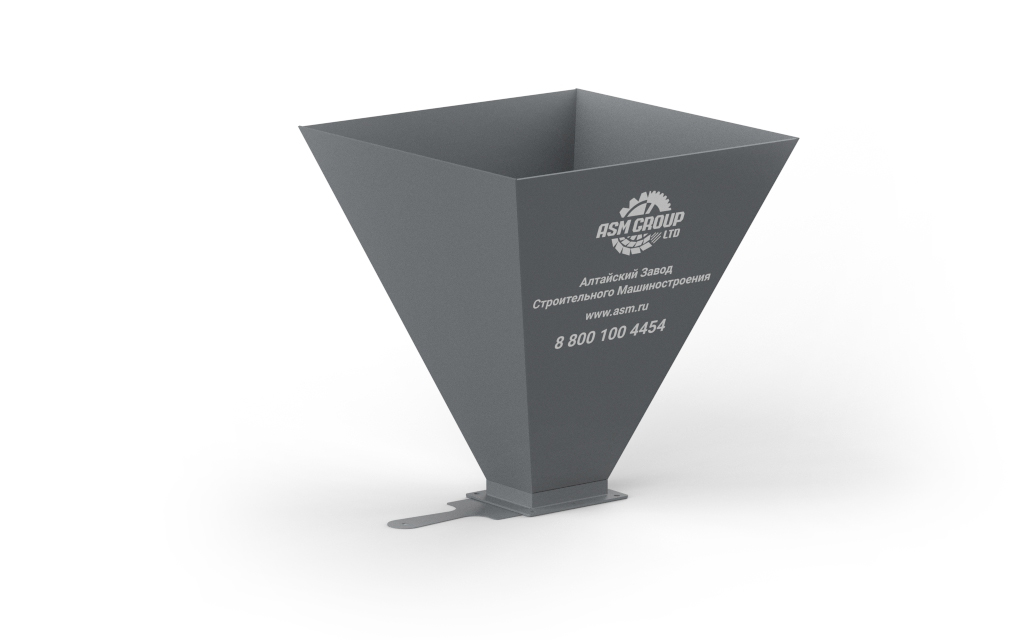

Loading hopper with butterfly valve

1 pc.

Receiving silo with the slide gate

The feedstock from the disintegrator goes to the receiving silo and then into the unloading mixing screw.

1 pc.

Kit of disks with fingers for the Disintegrator

Disintegration is based on the free-kick principle. Both disks are rotating in contrary directions and have kicking items on their surfaces which resemble fingers, arranged in 2-4 rows like a circle. The disks are opposing each other so that the fingers of one disk fit the spaces between the fingers of the second disk.

1 pc.

Kit of fingers for the Disintegrator

The finger rows – beaters are arranged on the operating disks along their concentric circumferences. Each finger row of one disk easily fits between the finger rows of the second disk. The material is supplied to the central part of the operating disk, moving then to the periphery and is exposed to multiple beats of the fingers rotating in reverse directions. Subsequent high-powered beating leads to rapid destruction of the processed material.

1 pc.

Control unit

1 pc.

Frame for the disintegrator

It is a supporting structure to install the comminuting-disintegrating machine.

1 pc.

Bag filter

The filter is intended to separate dust which appears as a result of milling.

1 pc.

Description

«Udarnik 33» is equipped with two electrical engines, the capacity is 15 and 18 kW and is intended for comminuting a wide range of bulk materials of various origin with hardness index to 7 units by Moos on-scale. The biggest original fraction is under 12 mm and the material moisture is under 6%. The disintegrator mode is an intermittent rating of short duration. After an hour of continuous operation, the disintegrator needs to stop and start again only in an hour.

Configeration

Comminuting- disintegrating machine «Udarnik 33» 1

Characteristics

Size with frame (mm) 1544*1702*3377
Disintegrating unit size (mm) 1395*947*890
Weight (kg) 490
Disk rotation rate (rpm) 3000
Direction of rotation of discs counter-rotation
Number of fingers 72
Lineer speed of fingers (m/s) 64
Max size of initial grains (mm) 15
Power of big disk engine (kW/380V) 15
Power of small disk engine (kW/380V) 18
Capacity (tonne/h) up to 5
Loading initial material from top
Discharge of the crushed material from bottom
