Milling complex - MK-26

Leave your request
  • We'll call you right back
  • We will specify the requirements for the equipment
  • We send you prices and delivery conditions

Configeration

Receiving silo with the slide gate 1
Comminuting- disintegrating machine «Udarnik 26» 1
Kit of disks with fingers for the Disintegrator 1
Stand for the control panel of the milling complex 1
Frame for the disintegrator 1
loading funnel for the milling complex 1
Bag filter 1
Mixing screw (Ø159 mm\1500mm) 1
Mixing screw (Ø159 mm\3000mm) 1
Control panel of the milling complex 1

Characteristics

Unloading crushed material Снизу
Loading source material Сверху
Finger-beat linear speed 72 pc
Finger-beat linear speed 64 m/s
Maximum initial particle size 15 mm
Engine power on a large disk 15 kw
Engine power on a small disk 11 kw
Disk rotation direction Навстречу
Performance До 4 t/h
Disk speed 3000 rpm

Receiving silo with the slide gate

1 pc.

The feedstock from the disintegrator goes to the receiving silo and then into the unloading mixing screw.

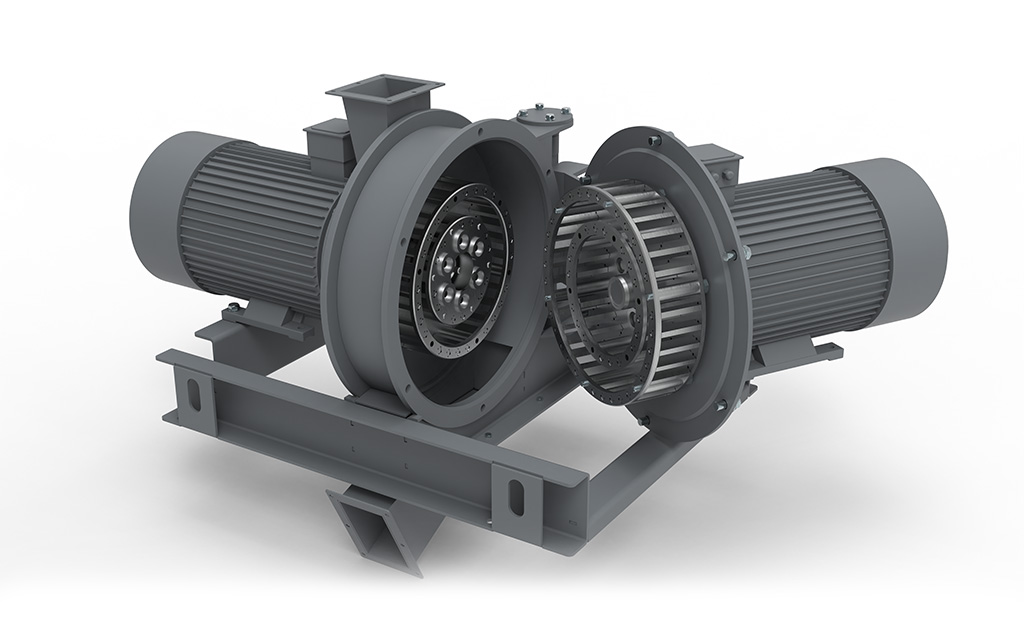

Comminuting- disintegrating machine «Udarnik 26»

1 pc.

«Udarnik 26» is equipped with two electrical engines, the capacity is 11 and 15 kW and is intended for comminuting a wide range of bulk materials of various origin with hardness index to 7 units by Moos on-scale. The biggest original fraction is under 12 mm and the material moisture is under 6%. The disintegrator mode is an intermittent rating of short duration. After an hour of continuous operation, the disintegrator needs to stop and start again only in an hour.

Kit of disks with fingers for the Disintegrator

1 pc.

Disintegration is based on the free-kick principle. Both disks are rotating in contrary directions and have kicking items on their surfaces which resemble fingers, arranged in 2-4 rows like a circle. The disks are opposing each other so that the fingers of one disk fit the spaces between the fingers of the second disk.

Stand for the control panel of the milling complex

1 pc.

It is a metal construction to support the control panel.

Frame for the disintegrator

1 pc.

It is a supporting structure to install the comminuting-disintegrating machine.

loading funnel for the milling complex

1 pc.

The loading funnel is intended to unload the soft containers like “Big Bag” with dry bulk materials and mixtures of fine and coarse fractions, such as cement, plaster, sand, crushed stone, grains of polystyrene agitating (ПСВ-С (PSV-S)) etc. for their further application in production or feeding into the buffer storage and storage containers. Bags of 400-2000 kg i.e. disposable or reusable soft containers.

Bag filter

1 pc.

The filter is intended to separate dust which appears as a result of milling.

Mixing screw (Ø159 mm\1500mm)

1 pc.

The spiral screw conveyor is intended to continuously transport bulk materials with hard spots under 10 mm such as cement, plaster, chalk, recrement, lime powder etc. in various industries.

Mixing screw (Ø159 mm\3000mm)

1 pc.

The spiral screw conveyor is intended to implement continuous horizontal or leaning transportation of bulk materials with hard spots under 10 mm such as cement, plaster, chalk, recrement, lime powder etc. in various industries.

Control panel of the milling complex

1 pc.

It is the control panel for mixing screws and the comminuting machine.

Description

The milling complex is meant for automatic feed of bulk materials,  further grinding and unloading the ground fraction. It is applied in agricultural, chemical and food industries as well as in construction.  The major benefits are versatility, low-cost feedstock milling, low energy consumption.
