Automatic aerocrete production conveyor line, capacity from 60 m3
Pusher control panel
The pusher control panel provides for smooth operation of the electrical-mechanical pusher and its correct working algorithm.
Mold sides (2,4×0,6×0,3 m for 12 gas-concrete blocks (set)
The sides of the slip mold at the conveyor are made with high-precision laser slitting and provide for specific impermeability when assembled. With this set of sides, the mold can get ready for filling in 2-3 minutes after the finished products are removed from the mold base. The set provides for filling 12 blocks of standard dimensions 20х30х60 cm.
|Big side (m)||2517×4,6×31|
|Small side (m)||733×4,4×31|

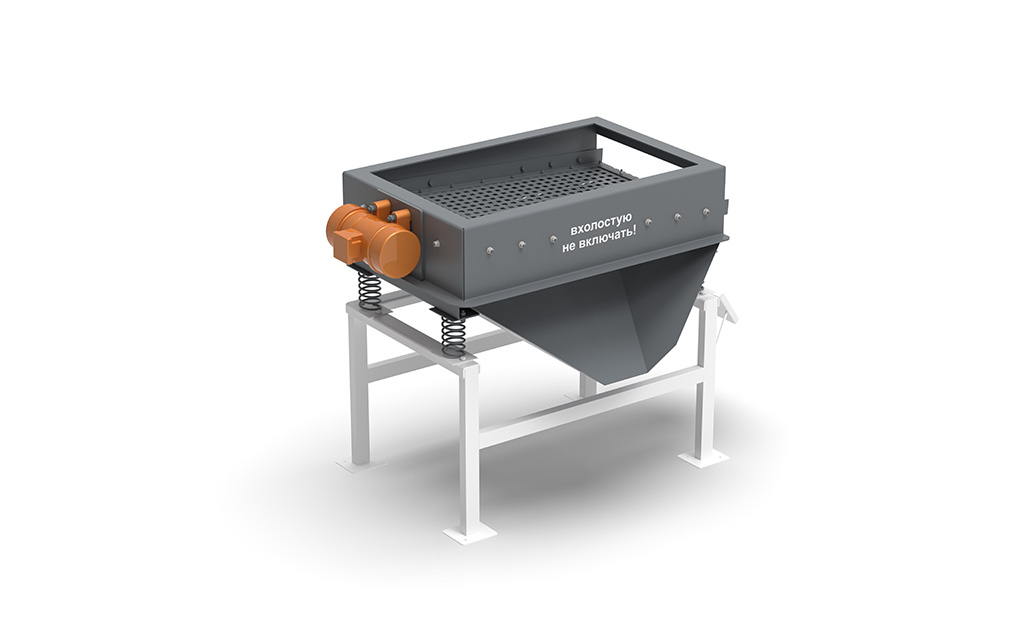

Shaking sieve ASM-vibro (АСМ-Вибро)
It is intended for cleaning the bulk materials (sand, etc) from coarse fractions. It is essential when producing gas-concrete applying mechanical slitting. Coarse fractions in the mass may hinder getting an even slit when it is cut in blocks.
|Maximum productivity, the sieve mesh 5mm||2,5 ton/hour|
|Total capacity||0,9 kW|
|Supply voltage||380 V|
|Dimensions /Width||1075 mm|
|Dimensions /Height||1205 mm|
Belt conveyor with ribbing (5m)
The belt conveyor transports bulk materials: sand, coarse sand, road stone, recrement, coal etc., along horizontal, leaning or combined routs. It is mostly applied in automation of batchers.
|Производительность при непрерывной работе, до (ед.изм - тонн/час)||20|
The penetrometer (plastomer) defines the plastic strength of the gas-concrete mass and if it is ready for slitting. Its basic principle lies in the property of the concrete mixture to withstand the cone penetration.
The transfer cart of the conveyor removes the mold bases between the two parallel railways.
Transfer rail track
The system of mold transfer within the conveyor consists mostly of major rail tracks and rail tracks for transfer carts. As a rule, they start assembling the line with this part.
Mold bases (2,4×0,6×0,6 m for 24 gas-concrete blocks) with the metal bottom
Mobile mold bases of the conveyor provide for a highly practical mode of production since the major hubs are located stationary: the mixing unit, the slitting unit or the warming chamber.

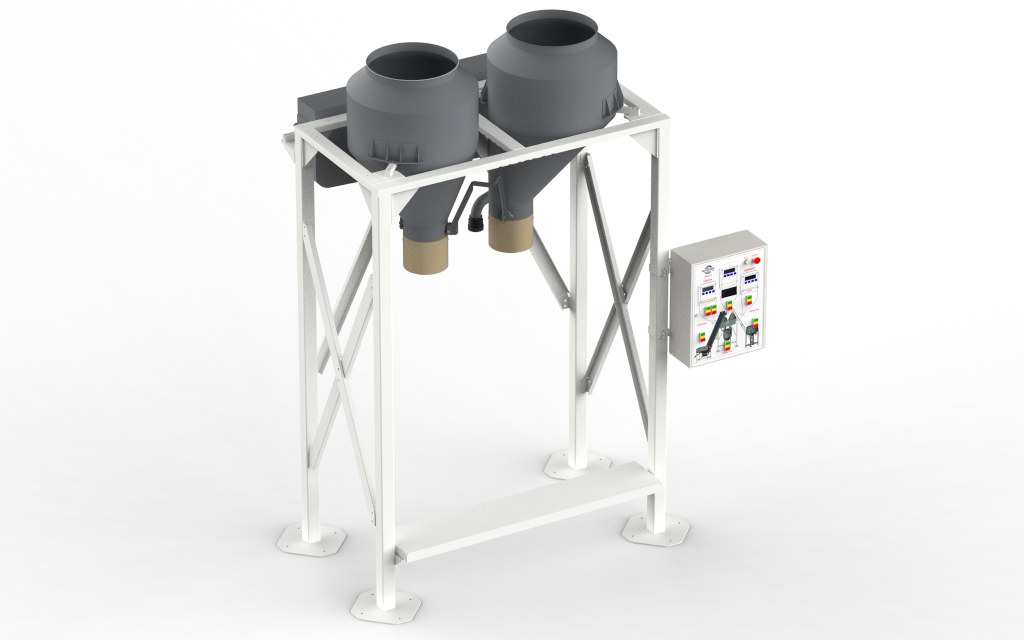

|Number of reservoirs||1|
|Reservoir's volume||0,43 m3|
Big-bag discharge system
The big-bag discharge system is a simple solution for batching and dumping cement. It is equipped with special knives for ripping and can be well applied for discharging cement from BIG BAGS.
Mechanical slitting unit
The mechanical slitting unit for gas-concrete blocks ASM-RM3 (АСМ-РМ3) is a string slitting unit. The unit cuts the gas-concrete mass into gas-concrete blocks of necessary size. Slitting is implemented when the mass is not completely hardened — in 60-120 min after being poured into molds. The block sizes can be instantly changed by changing the distance between the strings.
Transportation system (rail tracks, support racks, cross-bars) (long meter)
The transportation system consists mostly of major rail tracks and rail tracks for transfer carts. As a rule, they start assembling the line with this part.
Sieve for pouring mixture into the mold
The sieve is applied to prevent the grease on the sides from being washed off at pouring the gas concrete mixture into the mold. It also prevents coarse fractions contained in sand from getting into the mold
|Dimensions /Width||680 mm|
|Dimensions /Height||315 mm|
|Mesh cell size||5*5 mm|
Scraper blade for cutting the top crust
The scraper blade makes the top of the blocks more even and better-looking for the customer. It cuts the top crust neatly and the workroom will be clean.
|Dimensions /Width||790 mm|
|Dimensions /Height||148 mm|
The suspension mixer is necessary to prepare the gasifier which is usually aluminum powder. It is attached to the support rack of the block of dosing units or the skip hoist.
|Operating size of the mixer||5,5 l|
|Total capacity||0,38 kW|
|Dimensions /Width||210 mm|
|Dimensions /Height||450 mm|

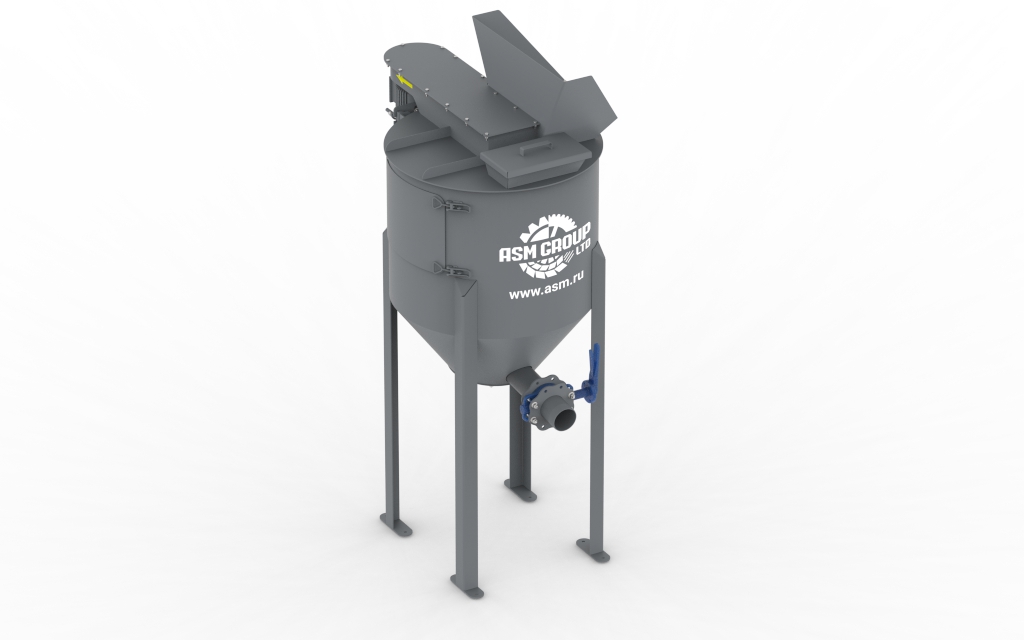

Mixer-activator (0,45 m³)
The mixer is intended to prepare the gas-concrete mixture, with a consistency of 400 - 800 kg/m3 out of cement, sand and water followed by pouring it into molds (to produce blocks).
The mixer can be operated stationary in a workshop under moderate temperature conditions due to GOST 15150-69 and cannot be operated at construction sites.
|The volume of mixer's reservoir||400 l|
|Capacity per hour||from 5 m³/h|
The electrical-mechanical pusher smoothly moves the molds in the conveyor. Smooth moving is its key feature as it provides for following the requirements of the technological regulations when producing non-autoclave gas-concrete.
|Pusher power||0,75 kW|
|Number of pushed molds||up to 50 items|
|Carriage move||855 mm|
|Dimensions /Width||2121 mm|
|Dimensions /Height||578 mm|
Electrical-mechanical double pusher
The electrical-mechanical double pusher smoothly moves the molds by turns into two warming chambers of the conveyor with complete automation. Upon request it may also be installed considering the layout of the line hubs and the room size.
|Dimensions /Width||580 mm|
|Dimensions /Height||3445 mm|
Cutting guide with a kit of saws, for 12 blocks
The pattern with saws is intended to cut the gas-concrete mass into separate blocks. The standard interval for cutting the mass accounts for 100 mm, therefore it is possible to make standard blocks of 200*300*600 mm or special size to meet the customers’ needs. The gang of saws contains the blade for cutting the mass into blocks and the string to cut the top crust.
|Dimensions /Height||400 mm|

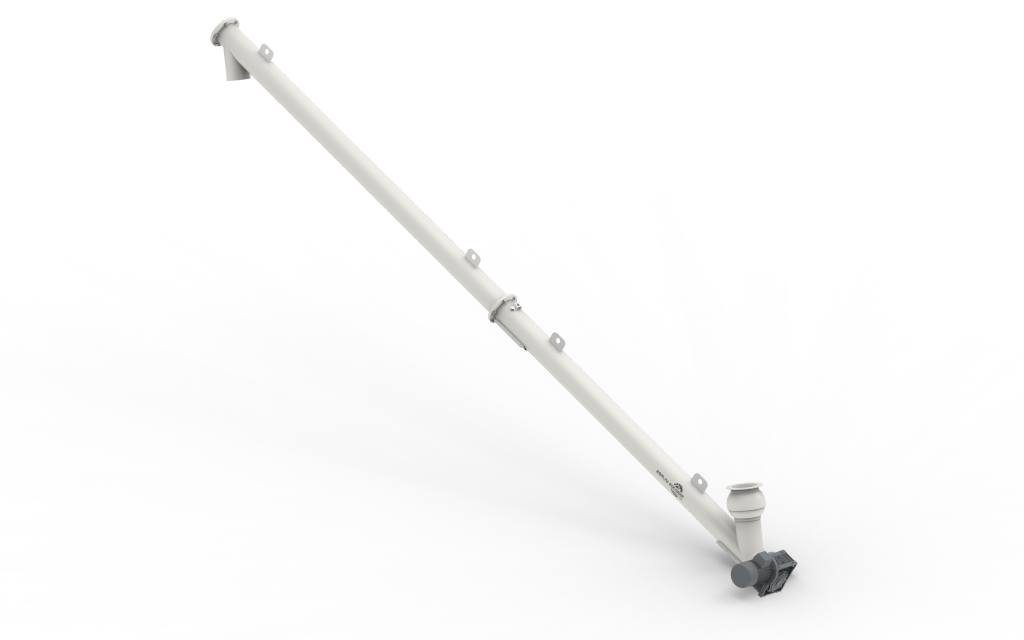

Lifting screw for cement (Ø159 mm\4500mm)
The lifting screw transporters were designed for transporting and lifting dust-like or grainy bulk materials. In gas-concrete production, it is mostly used in the automation of the dosing system. The parameters of the lifting screw are always special due to the line productivity and distance between the cement silo and the dosing unit.
|Длина трубы, мм||4500|
|Диаметр трубы, мм||159|
|Производительность,тонн в час||до 13|
|Мощность привода, кВт||3|
|Угол установки шнека, град||20-45|
|Входной патрубок,град||Угол регулируемый|
A conveyor type aerocrete production plant with capacity for 40 m³ per day. The plant consists of a stationary mixer with a block of weighing hoppers and water reservoir, a screw and belt conveyors, movable moulds on the rails with automatic electromechanical pushers, and semi-automatic cutting machine. The processes of moving, weighing, and mixing of components are controlled by the digital control system, that reduces the wasting of time.
|Pusher control panel||2|
|Mold sides (2,4×0,6×0,3 m for 12 gas-concrete blocks (set)||14|
|Shaking sieve ASM-vibro (АСМ-Вибро)||1|
|Belt conveyor with ribbing (5m)||1|
|Transfer rail track||18|
|Mold bases (2,4×0,6×0,6 m for 24 gas-concrete blocks) with the metal bottom||47|
|Big-bag discharge system||1|
|Mechanical slitting unit||1|
|Transportation system (rail tracks, support racks, cross-bars) (long meter)||48|
|Sieve for pouring mixture into the mold||1|
|Scraper blade for cutting the top crust||1|
|Mixer-activator (0,45 m³)||1|
|Electrical-mechanical double pusher||1|
|Cutting guide with a kit of saws, for 12 blocks||1|
|Lifting screw for cement (Ø159 mm\4500mm)||1|
|Necessary room space||least 316 m²|
|Energy consumption||15 kW|
|Necessary water temperature||50-60 ⁰С|
|Necessary room temperature||least 15 °С|
