Belt-type conveyors

ASM-BC-3000 Belt conveyor, equipped with the chevron band 3000 mm

Conveyor length	3
Maximum tilt angle	35
Mains voltage	380
Belt speed	0,58
Conveyor belt width	400

ASM-BC-3500 Belt conveyor, equipped with the chevron band 3500 mm

Conveyor length	3.5
Maximum tilt angle	35
Mains voltage	380
Productivity during the continuous work, up to	20
Belt speed	0,58
Conveyor belt width	400

ASM-BC-4000 Belt conveyor, equipped with the chevron band 4000 mm

Conveyor length	4
Maximum tilt angle	35
Mains voltage	380
Productivity during the continuous work, up to	20
Belt speed	0,58
Conveyor belt width	400

ASM-BC-4500 Belt conveyor, equipped with the chevron band 4500 mm

Conveyor length	4,5
Maximum tilt angle	35
Mains voltage	380
Productivity during the continuous work, up to	20
Belt speed	0,58
Conveyor belt width	400

ASM-BC-5000 Belt conveyor, equipped with the chevron band 5000 mm

Conveyor length	5
Maximum tilt angle	35
Mains voltage	380
Productivity during the continuous work, up to	20
Belt speed	0,58
Conveyor belt width	400

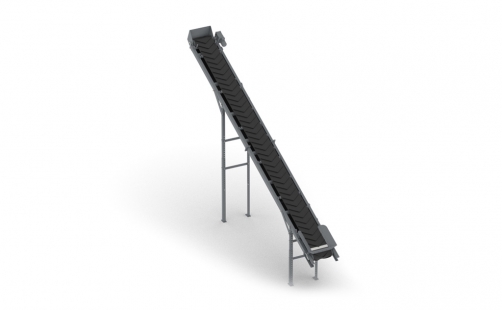

ASM-BC-5500 Belt conveyor, equipped with the chevron band 5500 mm

Conveyor length	5,5
Maximum tilt angle	35
Mains voltage	380
Productivity during the continuous work, up to	20
Belt speed	0,58
Conveyor belt width	400

ASM-BC-6000 Belt conveyor, equipped with the chevron band 6000 mm

Conveyor length	6
Maximum tilt angle	35
Mains voltage	380
Productivity during the continuous work, up to	20
Belt speed	0,58
Conveyor belt width	400

The belt conveyor is applied in almost all industries for transporting various cargos and bulk materials and makes the process much easier.

Belt-type conveyor price

The price for the belt-type conveyor depends on some factors and there is a great temptation to buy a second-hand one, say at a classifieds site avito. The only benefit of buying a second-hand conveyor is the price. As a rule such a belt conveyor has worked out its life cycle and requires expensive repairs. Therefore, there will be problems with spare parts which may lead to stand-by in production and costly repairs.

Where to buy a belt-type conveyor?

“AltaiStroyMash” company offers you to buy a belt-type conveyor value for money. Our company has proved to be a manufacturer of reliable and high-quality equipment both in Russia and in Uzbekistan, Kazakhstan and Kyrgyzstan.

Belt-type conveyor: features and benefits

“AltaiStroyMash” company manufactures stationary belt-type conveyors for continuous transportation of bulk or scrap-like materials. For instance one may easily transport gravel, saw-dust, recrement, crushed stone, coal, sand and other materials. In gas-concrete production the main task for the belt-type conveyor is to automate batchers. Only reliable materials and components are used to manufacture the belt-type conveyors.

The belt-type conveyor, its benefits:

a channeled belt conveyor, cross ribs provide for continuous transportation of hard and bulk materials;
transporting materials horizontally or in tilted position (tilt angle is up to 35ᵒ);
productivity at continuous operation is up to 20 units — ton/hour;
24 months warranty period;
low energy consumption;
reliable design;
simple assembling/disassembling;
portability, as the dimensions of the packed belt conveyor provide for its transportation in a mini-van.

The conveyor length is chosen due to the customer requirements and may vary between 3 and 6 meters. The company engineers have worked out the belt conveyor card. The card contains major technical features, the conveyor design, its operating mode, maintenance tips. The equipment must be certified in accordance with GOST (ГОСТ) 9.014-78 and must be packed in accordance with the company documentation.
